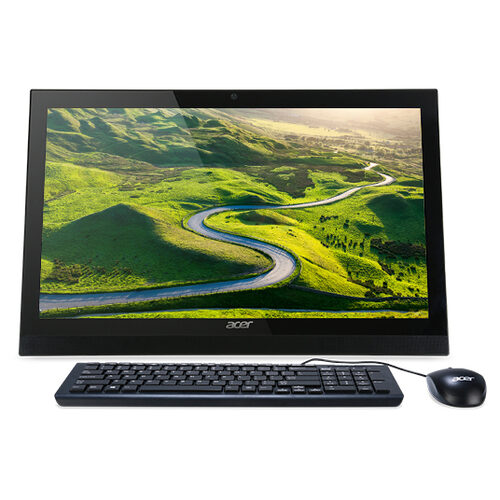

All-in-One PC Acer Aspire Z1-623 DQ.B3JER.009, Black
- Display diagonal: 21.5″
- Display resolution: 1920 x 1080 px
- CPU: Intel® Core™ i3 5005U 2 GHz
- RAM: 4 GB DDR3L-SDRAM
- HDD: 1 TB
Key features and specs for Acer Aspire Z1-623 Z1 All-in-One PC
About Acer Aspire Z1-623 Z1
This All-in-One PC is one of the best Acer computers and is built in with Intel CPU for a great user experience. Acer Aspire Z1-623 Z1 has 4 GB system memory and a video card. Manufactured by Acer, the Aspire Z1-623 Z1 has FreeDOS OS installed.
Acer Aspire Z1-623 Z1 specifications
| Brand | Acer |
|---|---|
| Model | Aspire Z1-623 |
| Family | Aspire |
| Series | Z1 |
| Product type | All-in-One PC |
| Product colour | Black |
| Display diagonal | 21.5" |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16/9 |
| CPU manufacturer | Intel |
| CPU model | i3-5005U |
| CPU family | Intel® Core™ i3 |
| CPU cores | 2 |
| CPU frequency | 2 GHz |
| CPU socket | BGA 1168 |
| CPU cache | 3 MB |
| CPU bus type | DMI2 |
| CPU cache type | Smart Cache |
| System bus rate | 5 GT/s |
| CPU threads | 4 |
| CPU lithography | 14 nm |
| CPU operating modes | 32-bit, 64-bit |
| CPU codename | Broadwell |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-down freq. | 0.6 GHz |
| Configurable TDP-down | 10 W |
| Tjunction | 105 °C |
| PCI Express slots version | 2.0 |
| Maximum nr of PCIe lanes | 12 |
| Max. RAM supported by CPU | 16 GB |
| RAM types supported by CPU | DDR3L-SDRAM, LPDDR3-SDRAM |
| RAM clock speeds supported | 1333, 1600 MHz |
| RAM bandwidth supported | 25.6 GB/s |
| RAM installed | 4 GB |
| RAM type | DDR3L-SDRAM |
| RAM - maximum allowed | 8 GB |
| Storage type | HDD |
| Number of storage drives | 1 |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| Optical drive | DVD Super Multi |
| Onboard video adapter | YES |
| Onboard video family | Intel® HD Graphics |
| Onboard video model | Intel® HD Graphics 5500 |
| Onboard video base freq. | 300 MHz |
| Onboard video dynamic freq. | 850 MHz |
| Onboard video max. memory | 16 GB |
| Onboard video max. displays | 3 |
| Onboard video DirectX | 11.2 |
| Onboard graphics adapter ID | 0x1616 |
| Built-in speaker(s) | YES |
| Built-in microphone | YES |
| Built-in camera | YES |
| Ethernet LAN | YES |
| Ethernet LAN speed | 10, 100, 1000 Mbit/s |
| Wi-Fi | YES |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | YES |
| USB 2.0 | 2 |
| USB Type-A (3.2 Gen 1) | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | YES |
| Headphone outputs | 1 |
| Operating system installed | FreeDOS |
| Mouse included | YES |
| Keyboard included | YES |
| 3D | NO |
| Detachable display | NO |
| Width (with stand) | 526 mm |
| Depth (with stand) | 34.8 mm |
| Height (with stand) | 342 mm |
