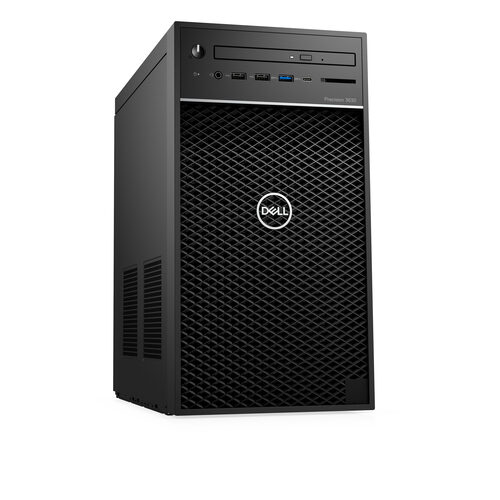

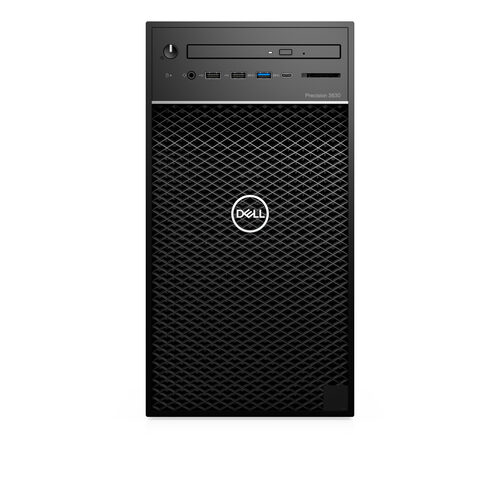

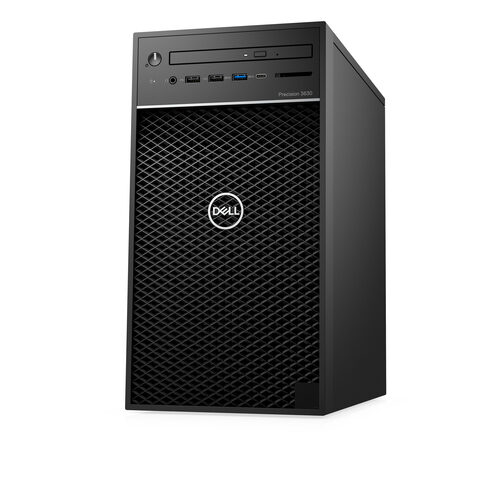

Workstation DELL Precision 3000 T3630 7YDHY, Black
- CPU: Intel® Core™ i7 8700K 3.7 GHz
- RAM: 32 GB DDR4-SDRAM
- SSD: 512 GB
- HDD: 1 TB
Key features and specs for DELL Precision T3630 3000 Business Workstation
About DELL Precision T3630 3000
This Workstation is one of the best DELL Business computers and is built in with Intel CPU for a great user experience. DELL Precision T3630 3000 has 32 GB system memory and a video card. Manufactured by DELL, the Precision T3630 3000 has Windows 10 Pro OS installed.
DELL Precision T3630 3000 specifications
| Brand | DELL |
|---|---|
| Model | Precision T3630 |
| Family | Precision |
| Series | 3000 |
| Market positioning | Business |
| Product type | Workstation |
| Chassis type | Tower |
| Placement supported | Vertical |
| Product colour | Black |
| CPU manufacturer | Intel |
| CPU generation | 8th gen Intel® Core™ i7 |
| CPU model | i7-8700K |
| CPU family | Intel® Core™ i7 |
| CPU cores | 6 |
| CPU frequency | 3.7 GHz |
| CPU boost frequency | 4.7 GHz |
| CPU socket | LGA 1151 (Socket H4) |
| CPU cache | 12 MB |
| CPU bus type | DMI3 |
| CPU cache type | Smart Cache |
| System bus rate | 8 GT/s |
| CPU threads | 12 |
| CPU lithography | 14 nm |
| CPU operating modes | 64-bit |
| CPU codename | Coffee Lake |
| Thermal Design Power (TDP) | 95 W |
| Tjunction | 100 °C |
| PCI Express slots version | 3 |
| Maximum nr of PCIe lanes | 16 |
| Max. RAM supported by CPU | 64 GB |
| RAM types supported by CPU | DDR4-SDRAM |
| RAM clock speeds supported | 2666 MHz |
| RAM bandwidth supported | 41.6 GB/s |
| Motherboard chipset | Intel C246 |
| RAM installed | 32 GB |
| RAM type | DDR4-SDRAM |
| RAM - maximum allowed | 64 GB |
| RAM distribution | 2 x 16 GB |
| RAM slots | 4x DIMM |
| Memory channels | Dual-channel |
| RAM clock speed | 2666 MHz |
| Storage type | HDD+SSD |
| Number of storage drives | 2 |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| HDD size | 2.5" |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express |
| Optical drive | DVD±RW |
| Discrete video card | NO |
| Onboard video adapter | YES |
| Onboard video family | Intel® UHD Graphics |
| Onboard video model | Intel® UHD Graphics 630 |
| Onboard video base freq. | 350 MHz |
| Onboard video dynamic freq. | 1200 MHz |
| Onboard video max. memory | 64 GB |
| Onboard video max. displays | 3 |
| Onboard video DirectX | 12 |
| Onboard video OpenGL | 4.5 |
| Onboard graphics adapter ID | 0x3E92 |
| Audio chip | Realtek ALC3234 |
| Audio system | High Definition Audio |
| Ethernet LAN | YES |
| Ethernet LAN speed | 10, 100, 1000 Mbit/s |
| Wi-Fi | NO |
| USB 2.0 | 4 |
| USB Type-A (3.2 Gen 1) | 5 |
| USB Type-C (3.2 Gen 2) | 1 |
| DVI port | NO |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Microphone in | NO |
| Headphone outputs | 1 |
| Line-out | YES |
| Line-in | YES |
| Combo headphone/mic port | YES |
| Operating system installed | Windows 10 Pro |
| OS architecture | 64-bit |
| Display included | NO |
| Mouse included | YES |
| Keyboard included | YES |
| Power supply | 300 W |
| Power supply input voltage | 100 – 240 V |
| Power supply input freq. | 50 – 60 Hz |
| TPM | YES |
| Cable lock slot | YES |
| Width | 176.6 mm |
| Depth | 345 mm |
| Height | 331 mm |
| Weight | 10.6 kg |
