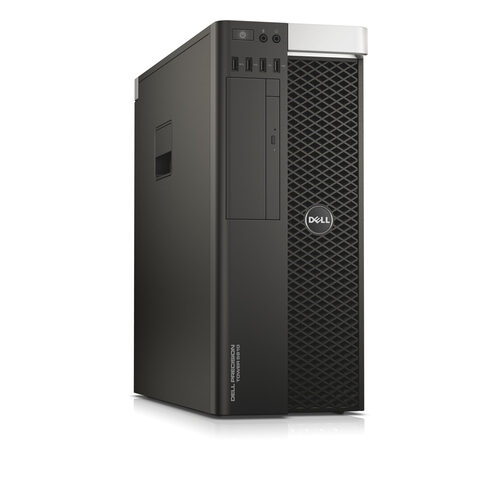

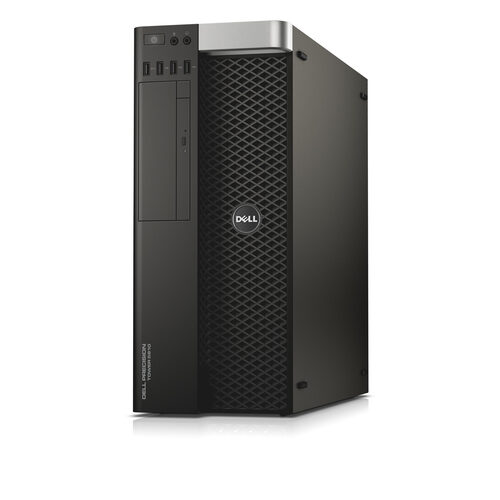

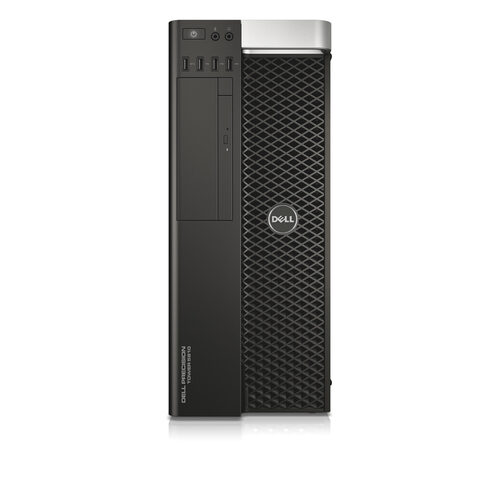

Workstation DELL Precision Tower 5810 CAP5810W7P010, Black
- CPU: Intel Xeon E5 v3 E5-1620V3 3.5 GHz
- RAM: 16 GB DDR4-SDRAM
- HDD: 1 TB
Key features and specs for DELL Precision Tower 5810 Workstation
About DELL Precision Tower 5810
This Workstation is one of the best DELL computers and is built in with Intel CPU for a great user experience. DELL Precision Tower 5810 has 16 GB system memory and a NVIDIA® Quadro® K4200 video card. Manufactured by DELL, the Precision Tower 5810 has Windows 7 Professional OS installed.
DELL Precision Tower 5810 specifications
| Brand | DELL |
|---|---|
| Model | Precision Tower 5810 |
| Family | Precision |
| Product type | Workstation |
| Chassis type | Tower |
| Water cooling system | NO |
| Placement supported | Horizontal/Vertical |
| Product colour | Black |
| CPU manufacturer | Intel |
| CPU model | E5-1620V3 |
| CPU family | Intel Xeon E5 v3 |
| CPU cores | 4 |
| CPU frequency | 3.5 GHz |
| CPU boost frequency | 3.6 GHz |
| CPU socket | LGA 2011-v3 |
| CPU cache | 10 MB |
| CPU bus type | QPI |
| CPU cache type | Smart Cache |
| CPU threads | 8 |
| CPU lithography | 22 nm |
| CPU operating modes | 64-bit |
| CPU codename | Haswell |
| Thermal Design Power (TDP) | 140 W |
| PCI Express slots version | 3.0 |
| Maximum nr of PCIe lanes | 40 |
| Number of CPU installed | 1 |
| Max. RAM supported by CPU | 768 GB |
| RAM types supported by CPU | DDR4-SDRAM |
| RAM clock speeds supported | 1333, 1600, 1866, 2133 MHz |
| RAM bandwidth supported | 68 GB/s |
| Motherboard chipset | Intel® C612 |
| RAM installed | 16 GB |
| RAM type | DDR4-SDRAM |
| RAM - maximum allowed | 128 GB |
| RAM distribution | 4 x 4 GB |
| RAM slots | 8x DIMM |
| Memory channels | Quad-channel |
| RAM clock speed | 2133 MHz |
| Error Correction Code (ECC) | YES |
| Storage type | HDD |
| Number of storage drives | 1 |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Card reader | NO |
| Optical drive | DVD Super Multi |
| Number of video cards | 1 |
| Discrete video card model | NVIDIA® Quadro® K4200 |
| Video card memory | 4096 GB |
| Audio system | ALC3220 |
| Ethernet LAN | YES |
| Ethernet LAN speed | 10, 100, 1000 Mbit/s |
| Wi-Fi | NO |
| USB 2.0 | 6 |
| USB Type-A (3.2 Gen 1) | 4 |
| DVI port | YES |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Microphone in | YES |
| Headphone outputs | 1 |
| PCIe x16 (Gen 3.x) slots | 3 |
| PCIe x1 (Gen 2.x) slots | 1 |
| PCIe x4 (Gen 2.x) slots | 1 |
| Operating system installed | Windows 7 Professional |
| OS architecture | 64-bit |
| Display included | NO |
| Mouse included | YES |
| Keyboard included | YES |
| Power supply | 685 W |
| Power supply input voltage | 100 – 240 V |
| Power supply input freq. | 50 – 60 Hz |
| Width | 172.6 mm |
| Depth | 471 mm |
| Height | 416.9 mm |
| Weight | 12.4 kg |
