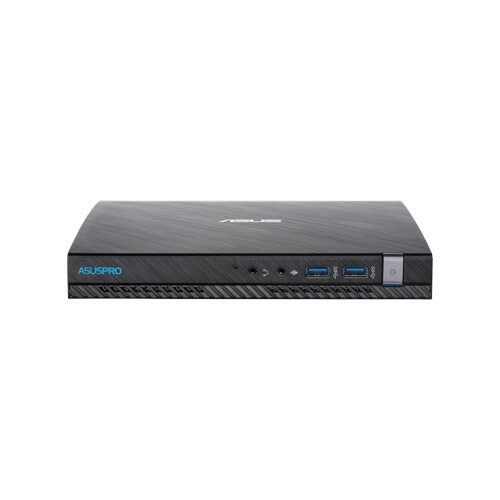

Mini PC ASUS ASUSPRO E520-B023Z 90MS0151-M00230, Black
- CPU: Intel® Core™ i5 7400T 2.4 GHz
- RAM: 4 GB DDR4-SDRAM
- SSD: 128 GB
Key features and specs for ASUS ASUSPRO E520-B023Z Mini PC
About ASUS ASUSPRO E520-B023Z
This Mini PC is one of the best ASUS computers and is built in with Intel CPU for a great user experience. ASUS ASUSPRO E520-B023Z has 4 GB system memory and a video card. Manufactured by ASUS, the ASUSPRO E520-B023Z has Windows 10 Pro OS installed.
ASUS ASUSPRO E520-B023Z specifications
| Brand | ASUS |
|---|---|
| Model | ASUSPRO E520-B023Z |
| Family | ASUSPRO |
| Product type | Mini PC |
| Chassis type | mini PC |
| Product colour | Black |
| CPU manufacturer | Intel |
| CPU model | i5-7400T |
| CPU family | Intel® Core™ i5 |
| CPU cores | 4 |
| CPU frequency | 2.4 GHz |
| CPU boost frequency | 3 GHz |
| CPU socket | LGA 1151 (Socket H4) |
| CPU cache | 6 MB |
| CPU bus type | DMI3 |
| CPU cache type | Smart Cache |
| System bus rate | 8 GT/s |
| CPU threads | 4 |
| CPU lithography | 14 nm |
| CPU operating modes | 64-bit |
| CPU codename | Kaby Lake |
| Thermal Design Power (TDP) | 35 W |
| Configurable TDP-down freq. | 1.2 GHz |
| Tjunction | 80 °C |
| PCI Express slots version | 3 |
| Maximum nr of PCIe lanes | 16 |
| Number of CPU installed | 1 |
| Max. RAM supported by CPU | 64 GB |
| RAM types supported by CPU | DDR3L, DDR4-SDRAM |
| RAM clock speeds supported | 1333, 1600, 2133, 2400 MHz |
| Motherboard chipset | Intel® H110 |
| RAM installed | 4 GB |
| RAM type | DDR4-SDRAM |
| RAM - maximum allowed | 32 GB |
| RAM slots | 2x SO-DIMM |
| Memory channels | Dual-channel |
| RAM clock speed | 2400 MHz |
| Storage type | SSD |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| Onboard video max. displays | 3 |
| Ethernet LAN | YES |
| Ethernet LAN speed | 10, 100, 1000 Mbit/s |
| Wi-Fi | YES |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, 802.11n |
| Bluetooth | YES |
| USB 2.0 | 1 |
| USB Type-A (3.2 Gen 1) | 4 |
| DVI port | NO |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | YES |
| Headphone outputs | 1 |
| DC-in jack | YES |
| Operating system installed | Windows 10 Pro |
| OS architecture | 64-bit |
| Display included | NO |
| Power supply | 65 W |
| Cable lock slot | YES |
| Cable lock slot type | Kensington |
| Width | 185 mm |
| Depth | 210 mm |
| Height | 27 mm |
| Weight | 800 g |
